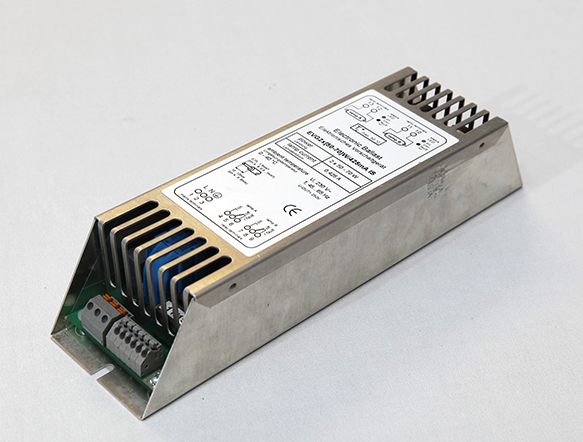

Ballast EPS100/425mA 100W

UV Ballast: EPS100/425

Part #: EPS100/425  RH7-425-75U

Lamp Power 30-100W Input Voltage: 110-240VAC

Operating Frequecy 25/60Hz

Lamp Current: 425mA

Dimensions 185x56x45

Power Factor: >0.9

Download Specification


> electronic ballast for one-lamp operation
> to be used with four-wire lamps
> Preheat start
> status forwarding potential free relay contacts for lamp on / lamp fault
relay activated:lamp on
> relay contacts: potential free,load:50~500mA at 24~277V AC
50~500mA at 5~30V DC
