ELECTRONIC BALLASTS FOR ULTRAVIOLET LAMPS & SYSTEMS



Electronic ballasts have almost become the standard in the low pressure lamp lighting industry. They allow energy and financial savings in many applications. The UV lamp operation is free from flicker and the ballast produces virtually no noise or hum. The incoming 50 Hz power (240 volts) is converted to high-frequency AC (usually 20 to 40 kHz). This leads to a constant gas discharge compared to conventional ballasts and prevents cathode flicker. Electronic ballasts are more efficient than magnetic ballasts in converting input power to the proper lamp power. The operation of low pressure, amalgam ultraviolet UV lamps at higher frequencies reduces end losses, resulting in an overall lamp-ballast system efficiency increase of 15% to 20%. Electronic ballasts are directly interchangeable with magnetic ballasts. They operate with most ultraviolet UV lamps available.Special electronic ballasts can operate two or four lamps reducing the total number of ballasts in a system. This also reduces installation and field wiring costs. Other advantages are reduced weight, less heat and noiseless operation and reduced lamp flicker. Infralight supplies a comprehensive range of electronic  ballasts and HID power supplies for low pressure ultraviolet germicidal and medium pressure ultraviolet lamps.

Electronic ballast 100W EPS100/425
electronic ballast

Replacement Electronic Ballasts

Infralight supplies electronic power supplies for many UV systems world wide including some of the leading brands we support include; Ziegler, EVG, Advance UVAquafidesAquafineAquaproAtlanticBersonBWT BewadesCynortic Water GuardDavey SterifloEnaquaGDW Aqua LightechHanovia & AquionicsLITLuminorPhillipsPuretech RadfireRheemSanuvoxSITASteril-AireSterilight, R-Can, ViquaTrojanUV Pure TechnologiesUV GuardUVTA, Orica Watercare, IXOMVan RemmenWallace & Tiernan, Siemens Barrier MWonderWyckomarXylem, Wedeco, ITT, Australian Ultra Violet and more.

If you are unsure of what ballast you require, please submit an inquiry with the following:

  • OEM part Number
  • Lamp part number
  • a photo of the existing ballast

Electronic Ballasts-UV lamps

  • Single and dual ballast available
  • Cable length up to 30m
  • Over-temperature protection
  • Optimized to the specified lamp

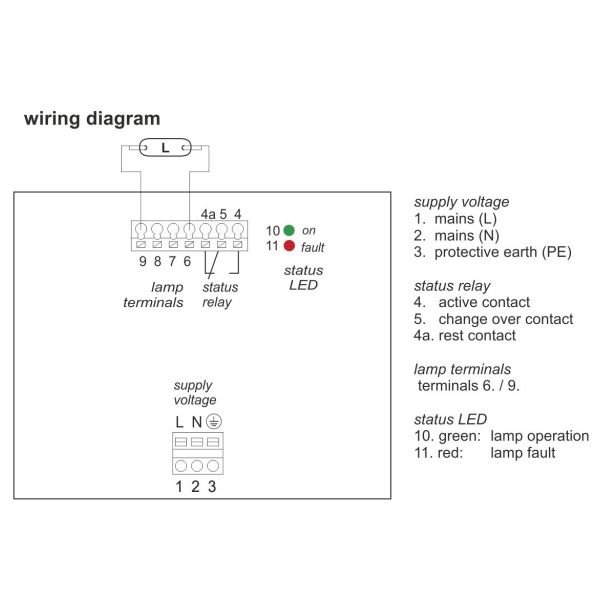

  • Status indication by LED and fault relay
  • CE approval
  • Simple installation
UV electronic ballast

STANDARD ELECTRONIC BALLASTS

Contact Infralight for assistance

Part #

Equivalent Part #

Supply Voltage (V)

Lamp Power (W)

Lamp Current (A)

Fault Relay

Dimensions (mm)

EPS100/425 RH7-425-75 110-240 30-100 0.30-0.425 Yes 185x56x45
EPS100/800 RH7-800-95 110-240 30-100 0.800 Yes 185x56x45
EPS105/1.2 RH7-1200-105 110-240 50-120 1-1.3 Yes 185x56x45
EPS155/1.0 RH8-1000-155 110-240 100-200 0.8-1.0 Yes 249x65x45
EPS190/1.2 RH8-1200-190 110-240 100-200 1.2-1.5 Yes 249x65x45
EPS200/1.8 RH8-1800-150 110-240 100-200 1.8-2.0 Yes 249x65x45
EPS200/2.1 RH8-2100-200 110-240 150-210 2.1-2.3 Yes 249x65x45
EPS240/1.8 RH9-1800-240 110-240 220-250 1.8-2.0 Yes 249x106x57
EPS320/2.1 RH9-2100-320 110-240 300-320 2.1-2.3 Yes 249106x57
EPS270/3.8 RH9-3800-270 110-240 250-280 3.6-4.0 Yes 249x106x57
EPS400/3.8 RH9-3800-400 110-240 400 3.8-4.0 Yes 249x106x57
EPS330/4.8 RH9-4800-330 110-240 310-330 4.8-5.0 Yes 249x106x57
EPS600/6.0 RS9-4800-330 110-240V 300-400 4.8-6 yes 249x108x57
